RESULTS OBTAINED IN 2017

In the third stage of the project were identified the optimized parameters (i.e., base pressure: ~4 x 10-5 Pa, total working pressure 0.2 Pa, partial nitrogen pressure 0.05 Pa) for the fabrication of a thin AlN film, with thickness of ~1 μm, having a full width half-maximum of the 002 rocking curve lower than 4° (Fig. 1a). The morphological, structural, compositional and mechanical characteristics of this type of layer were investigated using a plethora of advanced analysis techniques (SEM, AFM, TEM, XRD, SAED, EDS, XPS, pull-out tests, nano-indentation assays, nano-scratch tests, and nano-wear measurements). The XPS analysis revealed a concentration of Al-O-N bonds of ~5% (which indicates the low oxygen contamination of the AlN film) (Fig. 1b), whilst the TEM investigations evidenced the compact and uniform morphology of the optimized AlN film (Fig. 1c,d). This type of AlN film elicits an excellent bonding strength to the Si substrate (~47.6±2.6), and possesses an elastic modulus close to bulk AlN values (342.3±16.9 GPa), hardness higher than the bulk AlN (26.4±0.8 GPa), and very good resistance to scratch and wear tests (wear rate at 6 mN: 8.6*10-7 mm3/Nm).

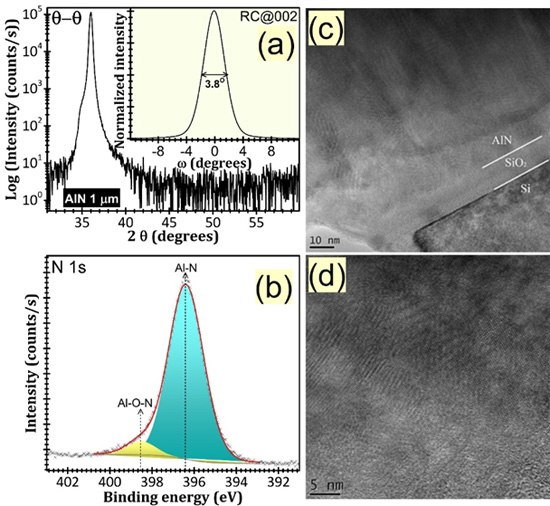

Figure 1: (a) Typical XRD diagram recorded in θ–θ symmetric geometry and the corresponding 002 rocking curve of the optimized AlN thin film. (b) N 1s core level XPS spectrum of the AlN film. Symbols represents the experimental data, the curves indicate the overall fit and identified components. (c,d) Cross-sectional TEM images of AlN thin film: general morphology (c); high-resolution micrograph (d).

UPB-P2 Contribution

The modeling task of this year addressed the effect of the temperature. Two aspects were considered:
1) the dependence with respect to the temperature of material properties, namely the Young modulus, for an equivalent isotropic piezoelectric material and
2) the thermal expansion both by means of the strains that depend on the coefficient of the thermal expansion and the considering of a prestress in the model, due to the initial thermal expansion (Fig. 1)  that induces mechanical stress in the model due do different expansion coefficients of the substrate and the piezoelectric.

The numerical results show that indeed, the increase of the temperature leads to a frequency shift  with sensitivity of the order of hundreds of kHz/degrees C and a TCF of tens of ppm/degrees C.

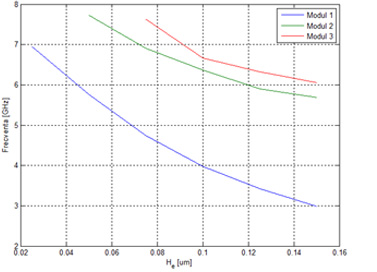

The resonance frequency of the first 3 modes, for different height of the electrodes He

IMT-CO contribution: Temperature sensor demonstrator II technological manufacturing

For the technological manufacturing of demostrator II, new masks have been designed and a new technological run using thin optimised AlN on high resistivity (111) silicon has been performed.
The first technological step was the definition of the IDTnano structures contacts, with a lift-off process. The Ti/Au metallisation width  was 220 nm (20 nm/200nm). For the IDTs a lithographic process with electron beam equipement has been used, the length/distance between digits/interdigits obtained was 170nm si 200nm.  The IDTs metalisation is  55nm (5 nmTi/50 nm Au).
The masks for demonstrator II have two configurations of interdigitated traductors: the distance digit/interdigit of 200 nm and 170 nm. All IDTs have 150 digits with 50 µm length.

SEM images of the SAW structure having the distance digit/interdigit of 170 nm

IMT-CO together with RQ-P3: Microphisycal characterization and temperature dependence of the optimized temperature sensors based on SAW resonators.

The sensors structures have been designed for resonance frequencies over 5 GHz. This frequecy domaine have imposed 200nm si 170nm dimensions of IDTs, obtained by nanolitography.

The microwave characterisation have been performed with a VNA - Vector Network Analyzer) 37397D from Anritsu, together with direct measurements on wafer with probes Suss Microtec  PM5 system.

S11 parameter measurements have been used in order to obtain sensor temperature data by SAW structure resonance frequency variation. The temperature dependence has used  the  SHI-4H-1 de la firma Janis Research Company cryostat with  5 K up to 500 K temperature range .

Resonance frequency dependence with temperature  measurements have been developed in the -260ºC si 150ºC range.
The SAW structures sensibility has been calculated.
The values for  temperature coeficient  of frequency TCF=S obtained are TCF = S = 75 ppm/ºC (s=370kHz/ºC) for structures having digit/interdigit distance of 200nm (fig 6.5 b) and  TCF = S = 82 ppm/ºC (s=449 kHz/ºC) for structures having digit/interdigit distance of 170nm (fig 6.6 b).

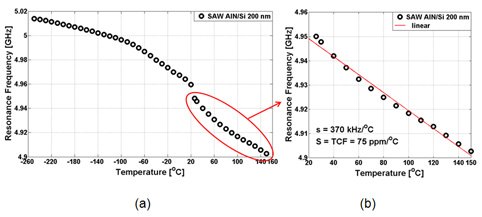

Fig. 6.5 Variatia frecventei de rezonanta in functie de temperatura, in gama -260ºC si 150ºC, pentru structura SAW avand latime/spatiu digiti/interdigiti de 200nm

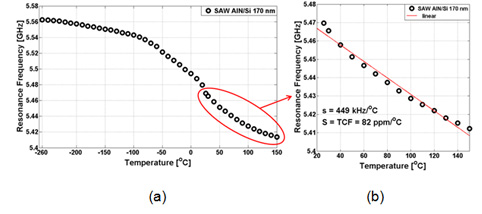

Fig. 6.6 Variatia frecventei de rezonanta in functie de temperatura, in gama -260ºC si 150ºC, pentru structura SAW avand latime/spatiu digiti/interdigiti de 170nm
