Services offer |
|
| |
|
|
| |

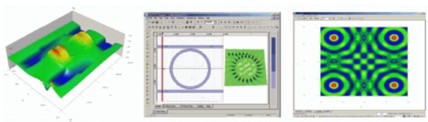

 Modeling, simulation, CAD |
|
| |
|
-
modelling, simulation CAD for active and passive micro/nano-photonic devices and micro-optics.
-
concept & design studies, development of new tools (customized) especially for “linking” different commercial software to offer a coupled simulation (opto-electro-mechanical analysis) for optical MEMS and sensors
|
|
|
| |
| Characterization |
|
| |
|
-
Analysis and characterization of the nanometric thin films and multilayered structures from different materials –dielectrics, conductive oxides, polymers, semiconductors: measuring the index of refraction (n) and the extinction coefficient (k) for a single layer permits one to determine the material composition and modeling of optical performance.
-
Testing the optical properties of samples for the ability to reflect or transmit light by spectrophotometric measurements-transmistance, absorbance spectra [T(λ),A(λ)], surface reflectivity of the texturized and porosified layers.
-
Raman spectroscopy for physical and chemical material analysis of solids, liquids and solutions for chemical identification, characterization of molecular structures; composition and phase (crystalline/amorphous) of composites materials (compound semiconductors, oxidic semiconductors); polymers characterizations and polimer nanocomposites; chemical and biological detection using SERS technique; micro/nano structures characterization (micro/nanorods).
-
Near field optical microscopy: transmission, reflection, collection, fluorescence
-
Confocal microscopy: transmission, reflection, fluorescence, can be upgraded with a Raman spectrometer;
-
Atomic force microscopy: contact and AC – Mode
-
Optoelectrical characterization
|
|
|
|
|
|
| |
|
|
|
