  Micro and nanoscale characterization

  - AFM applications to nanomechanical characterization of polymeric surfaces
  Studies of the elastic, viscoelastic and adhesive properties of polymeric materials by AFM and related techniques


Force-distance curves were traced using AFM on different types of polymers, prepared and thermal treated in various conditions. Comparative assessment of their elasticity and adhesion was made by this method and correlations with polymer types and obtaining conditions could be established. Time-dependent effects (viscoelasticity and creep) in the mechanical response of polymers were studied using variable loading rates.

For polymeric materials, which are prone to elastic and viscous deformations during AFM scanning, the interference of mechanical properties in AFM morphological images is generally more important than for than rigid materials. This research allowed us to identify of several types of effects of the mechanical properties of studied polymers on their AFM images (height artifacts due to compression or adhesion of surface features, resolution decrease, scanning rate artifacts due to viscoelastic properties) and to estimate their relative magnitude in practical applications and also provided keys to minimize these effects in AFM images of topography.

Submicronic tribological properties of PMMA were investigated using Lateral Force Microscopy. In the peculiar conditions of our experiments the friction forces associated to PMMA and AFM tip follow a generalized form of Amonton-Coulomb macroscopic law, where the adhesive interface force must be considered too.

Behaviour of friction force (a.u.) versus applied force  for a thin PMMA film.

Project:  National basic funding Project MINASIST +, 2006-2008
Contact person: Phys. Raluca Gavrila  e-mail: raluca.gavrila@imt.ro

top of page
  Complementary characterization of surfaces by advanced SPM techniques

    Conceptual and practical implementation issues associated with the application of Scanning Probe Microscopy-based techniques for complementary characterization of materials for micro and nanoelectronics.


Special EFM test structure was designed and fabricated using EBL and lift-off  procedures for assessing the functionality of EFM modes

a.
b.
c.
d. d.

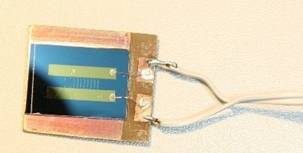

EFM test structure with various pitch interdigitated finger electrodes -  overview a) and detail b).
Simultaneously acquired topography (c) and KPFM images  (d). For electrode pairs put to different bias, adjacent electrodes have the same height (c) but differ in the surface potential (d)

  - Studies of organic polymers and blends:


Electrostatic Force Microscopy (EFM) modes have been used in several applicative studies to simultaneously gain insight into morphological and electronic properties of various thin film materials. In particular, KPFM technique has been applied to directly visualize the photovoltaic activity of an organic photovoltaic material - P(3HT- co-3ATH), thus allowing to acquire quantitative information regarding the correlation between nanoscale architecture and function.

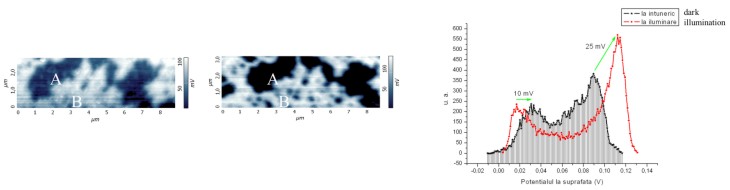

KPFM images of  a sample area (9 mm x 2.5 mm) of a P(3HT- co-3ATH) thin film recorded (a) in dark and
(b) under white light illumination. Fig (c) illustrates the photovoltaic activity occurring in this polymer by the histogram
distributions of the surface potential in the dark and under illumination.

Reduced graphene oxide – P3HT blend studied by Kelvin Probe Force Microscopy.
Surface potential distribution is overlaid on top of the rendered topography

Application of EFM to vizualize subsurface details.

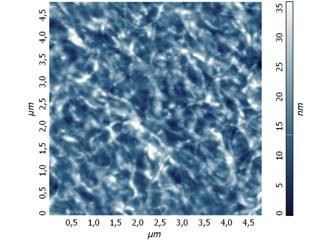

Morphology (left), and surface potential (right) for a P3HT/PCBM blend used in photovoltaic applications.

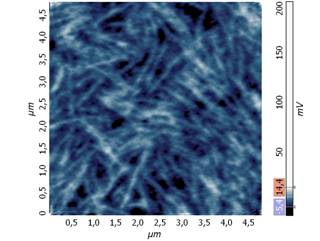

KPFM image (right) reveals the subsurface nanoscale fibrilar structure attributed to P3HT,
masked  by an oxidized and/or amorphous layer at the surface

  Studies of graphene materials


Folded FLG grapheneon SiO2 substrate



SPM studies of SLG and FLG graphene allowed to prove the presence and assign the sign of residual charge on the surface of graphene. In particular, EFM studies revealed that previously exposure to electron beam in SEM induce a strong charging effect on graphene. A series of experiments aimed at controlled charge injection on graphene surface and probing of transferred charge by EFM-based techniques.

Graphene flake EFM measurements
(a) average profile at several values of  the tip bias
(b) linear dependence of the  EFM signal on tip bias, revealing the domination of the Coulombian force in  the  interaction mechanism


a).......................................................b)............................................c)

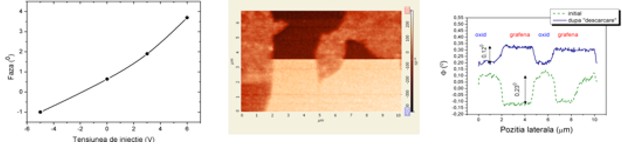

a)     Dependence of the magnitude of induced charge  on graphene surface on tip bias in injection experiments
b,c)   EFM signal before and after sudden electrical discharge of graphene through the AFM tip

Project:  National basic funding Project CONVERT +, PN II - (2009-2011)
Contact person: Phys. Raluca Gavrila  e-mail: raluca.gavrila@imt.ro

top of page
  Scanning Electron Microscopy

    High resolution – low voltage FEG- SEM imaging


Iron oxide nanoparticles
HV=1kV, Mag= 300.000 X



Carbon nanotubes
HV=1kV, Mag= 150.000 X





Nano-depunere de trasee conductoare (Pt, 50nm latime) indusa prin fascicul de electroni: structuri de test cu nanofire polimerice pentru electronica flexibila
